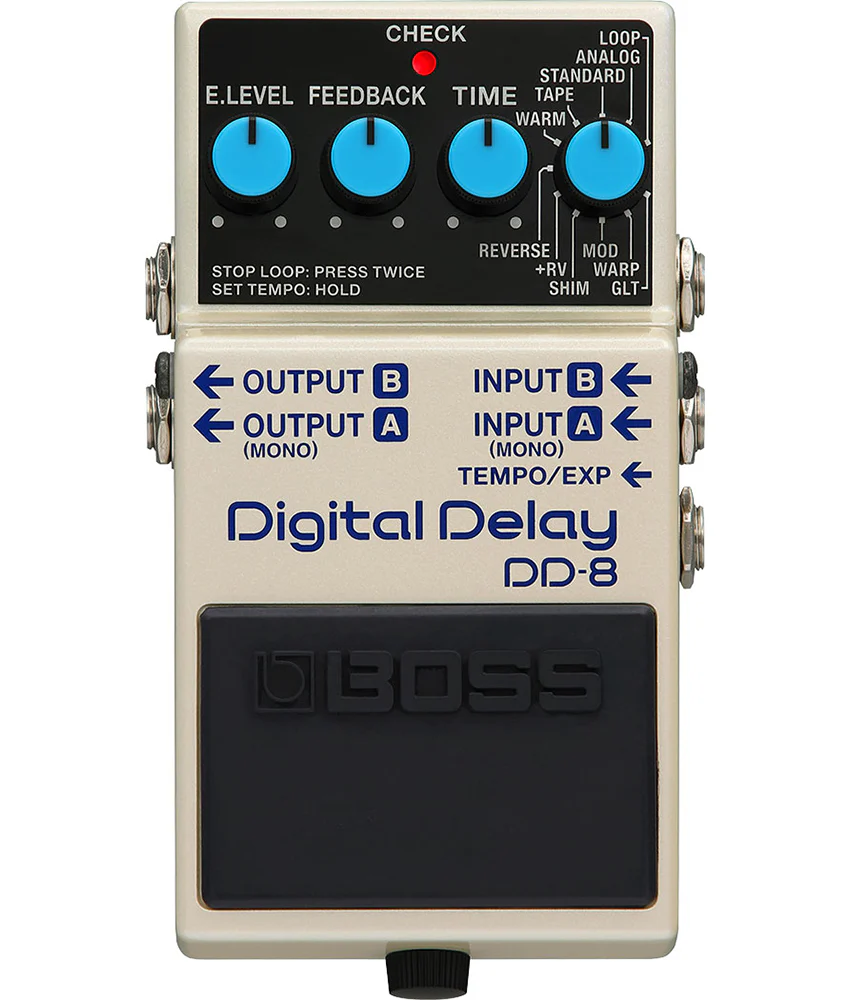

Boss DD-8 Digital Delay Guitar Pedal
Boss DD-8 Digital Delay Guitar Pedal
• The most advanced BOSS compact series delay ever
• Eleven versatile modes include basic digital delay, vintage echoes, shimmer, mod, looper, and more
• Looper offers up to 40 seconds of recording time, overdub capability, and three-pedal operation with external footswitches
• Three newly developed delay types: Warm, +RV (delay+reverb), and GLT (rhythmic delay)
• Up to 10 seconds of delay time available with tap tempo input
• Carryover switch sets whether delay trails continue or stop when the effect is bypassed
• True stereo I/O and three selectable output modes (independent, panning, and wide stereo)
• Smart I/O jacks support a variety of connection setups (mono, stereo, wet/dry, wet only, and more)
• Support for external control with two footswitches or an expression pedal
• Unique Twist function available in each delay mode via an external footswitch
• BOSS five-year warranty
SPECIFICATIONS:
Nominal Input: Level-20 dBu
Input Impedance: 1 M ohm
Nominal Output: Level-20 dBu
Output Impedance: 1 k ohm
Recommended Load Impedance: 10 k ohms or greater
Bypass: Buffered bypass
Controls: MODE knob ,TIME knob, FEEDBACK knob, E.LEVEL(Effect Level) knob, CARRYOVER switch, Pedal switch
Indicator: CHECK indicator (Used for indication of check battery)
Connectors: INPUT-A(MONO)/INPUT-B jack: 1/4-inch phone type, OUTPUT-A(MONO)/OUTPUT-B jack: 1/4-inch phone type, TEMPO/EXP jack: TRS 1/4-inch phone type, DC IN jack
Power Supply: Alkaline battery (9 V, 6LR61), AC adaptor (PSA series: sold separately)
Current Draw: 65 mA
Expected battery life under continuous use: Alkaline: Approx. 5 hours *These figures will vary depending on the actual conditions of use.
Accessories: Owner's manual, Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information"), Dry battery (9 V, 6LR61)
