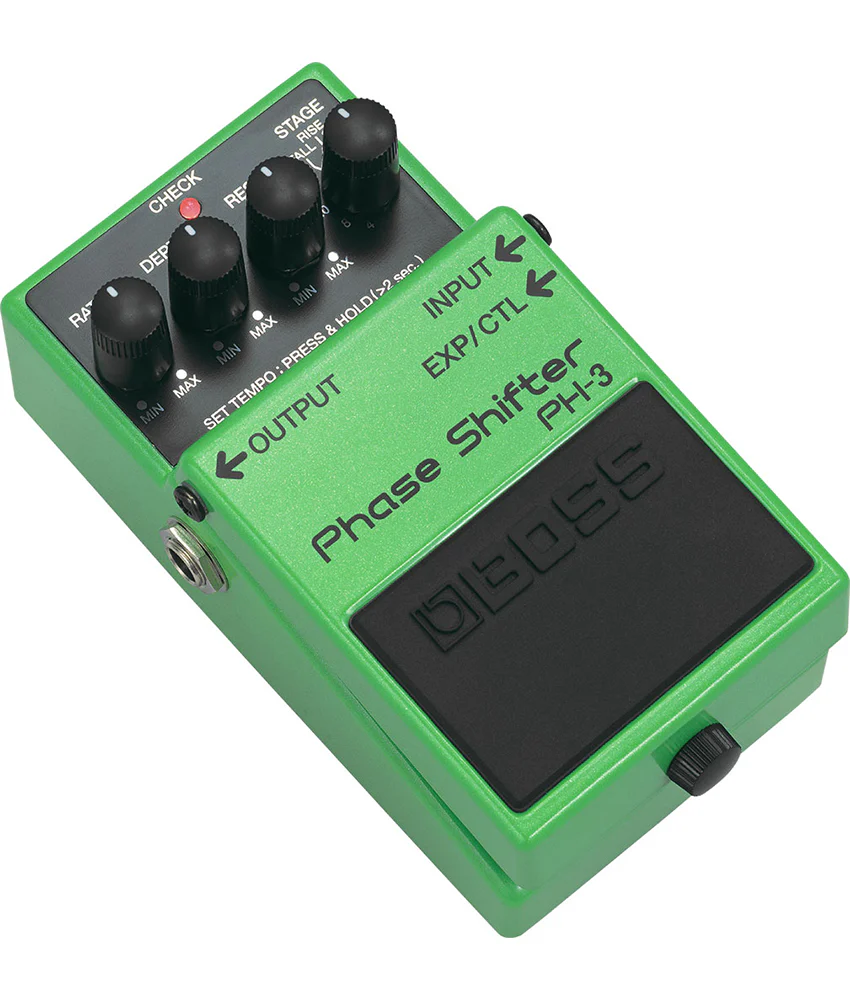

Boss PH-3 Phase Shifter Pedal

Boss PH-3 Phase Shifter Pedal

The BOSS PH-3 Phase Shifter pedal provides a wealth of vintage and modern phasing effects, including new "Rise" and "Fall" modes for unique, unidirectional phasing. Syncing these phasing effects is as simple as tapping the pedal to the desired tempo, while an optional expression pedal provides realtime control of the PH-3's Rate, Filter and Tempo.

• Compact pedal with versatile vintage and modern BOSS phasing
• New "Rise" and "Fall" modes create unidirectional phasing
• Includes classic multi-stage phasers with selectable stages
• Realtime control of Rate via optional expression pedal
• Tap tempo sync of phasing effects
• BOSS five-year warranty

SPECIFICATIONS:
Nominal Input Level: -20 dBu
Input Impedance: 1 M ohm
Nominal Output Level: -20 dBu
Output Impedance: 1 k ohm
Recommended Load Impedance: 10 k ohms or greater
Bypass: Buffered bypass

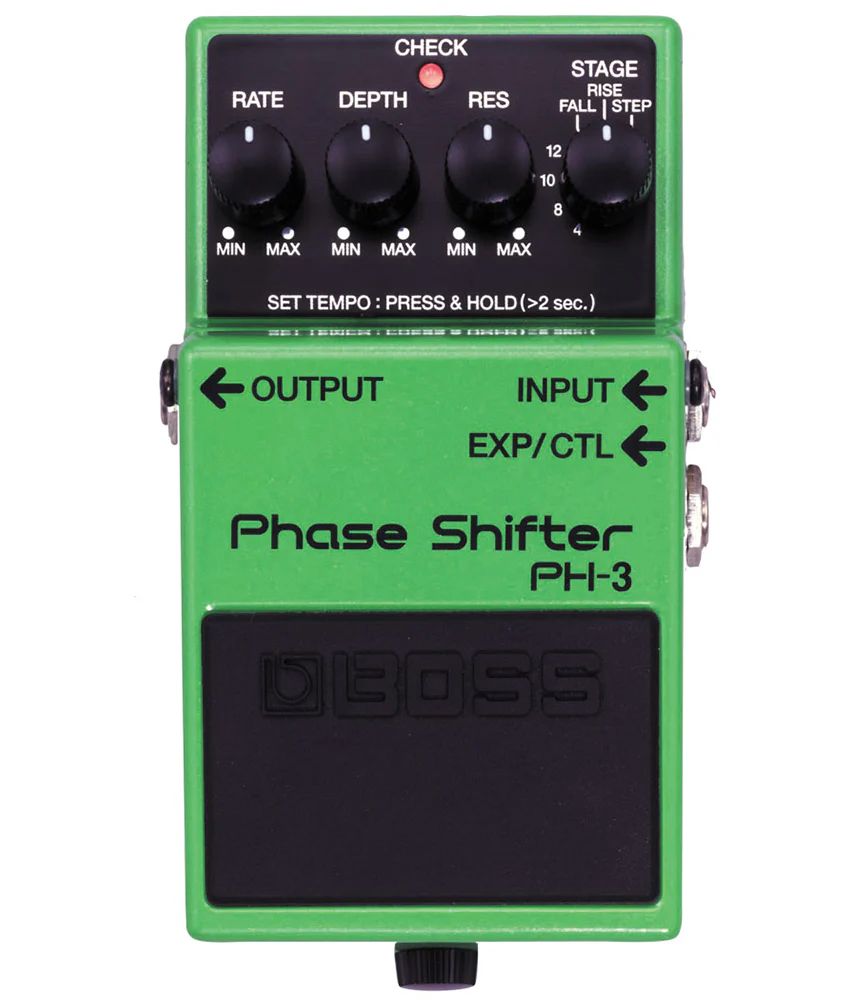

Controls:
STAGE switch
RES(Resonance) knob
DEPTH knob
RATE knob
Pedal switch

Indicator: CHECK indicator (Used for indication of check battery)
Connectors: INPUT jack: 1/4-inch phone type
OUTPUT jack: 1/4-inch phone type
EXP/CTL jack: 1/4-inch stereo phone type
DC IN jack

Power Supply: Alkaline battery (9 V, 6LR61) or Carbon-zinc battery (9 V, 6F22)
AC adaptor (PSA series: sold separately)

Current Draw: 40 mA
Expected battery life under continuous use:
Alkaline: Approx. 9.5 hours
Carbon: Approx. 3.5 hours
*These figures will vary depending on the actual conditions of use.

INCLUDED ACCESSORIES:
Owner's manual
Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information")
Alkaline battery (9 V, 6LR61)

Options (sold separately): AC adaptor: PSA series

DIMENSIONS:
Width: 73 mm, 2-7/8 inches
Depth: 129 mm, 5-1/8 inches
Height: 59 mm, 2-3/8 inches
Weight (including battery): 415 g, 15 oz
