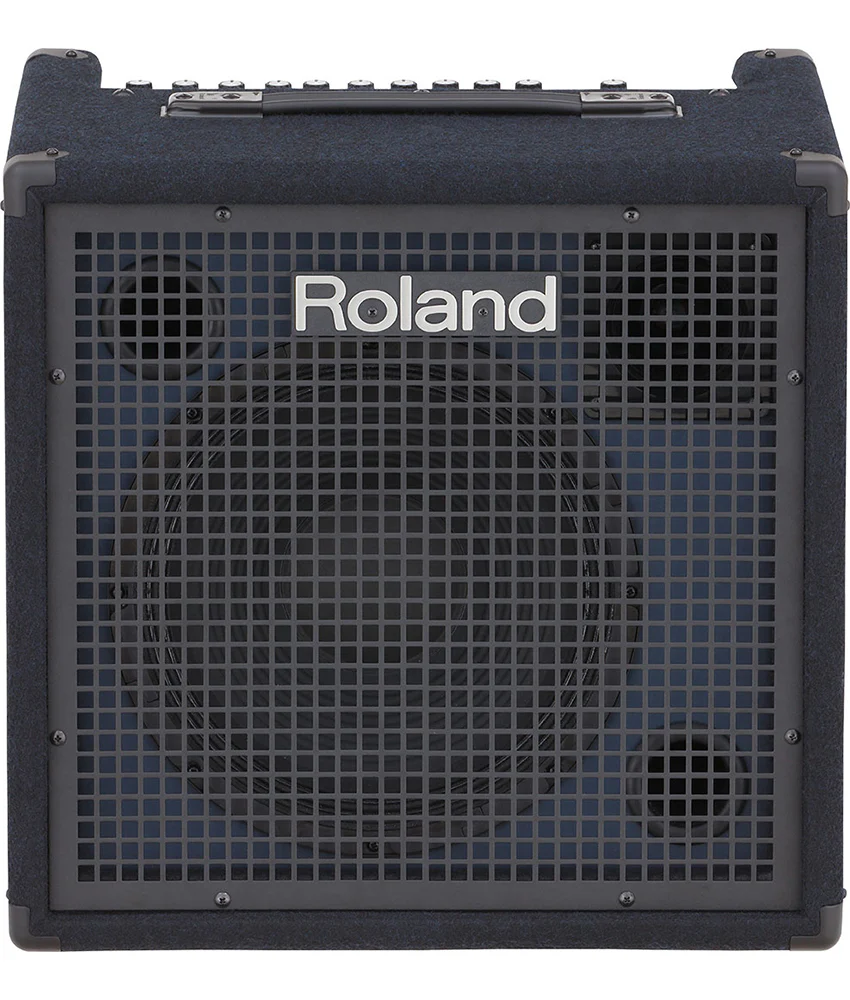

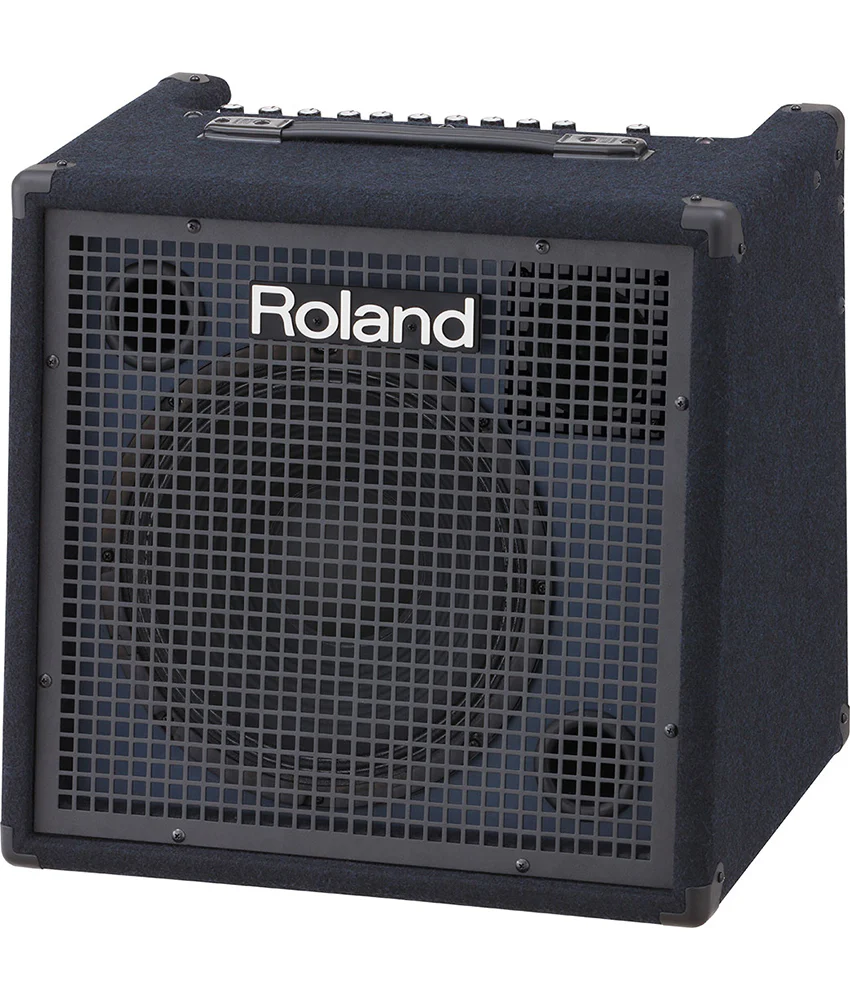

Roland KC-400 Keyboard Amplifier - 150 watt

The Roland KC-400 Stereo Mixing Keyboard Amplifier's two-way speaker system features a newly designed 12-inch custom woofer for improved sound quality. In addition, the power section has been completely redesigned for better stability, enhanced bass reproduction, and reduced weight. With the KC-400's built-in mixer, you're able to connect a variety of stereo keyboards and instruments, plus an XLR vocal mic. And via the Stereo Link function, you can easily chain a second KC-400 for more inputs and true stereo amplification on stage.


SPECIFICATIONS:
Rated Power Output: 150 W

Nominal Input Level (1 kHz):
CH1 (BALANCED, L/MONO, R): -50-- -20 dBu
CH2 (L/MONO, R): -20 dBu
CH3 (L/MONO, R): -20 dBu
CH4/MONITOR IN (L/MONO, R): -20 dBu
AUX IN (L, R, STEREO): -10 dBu
STEREO LINK (IN): 0 dBu

Nominal Output Level (1 kHz):
LINE OUT (L/MONO, R): +4 dBu
STEREO LINK (OUT): 0 dBu
SUB OUT: +4 dBu

Speakers:
30 cm (12 inches) Woofer x 1
Horn Tweeter x 1

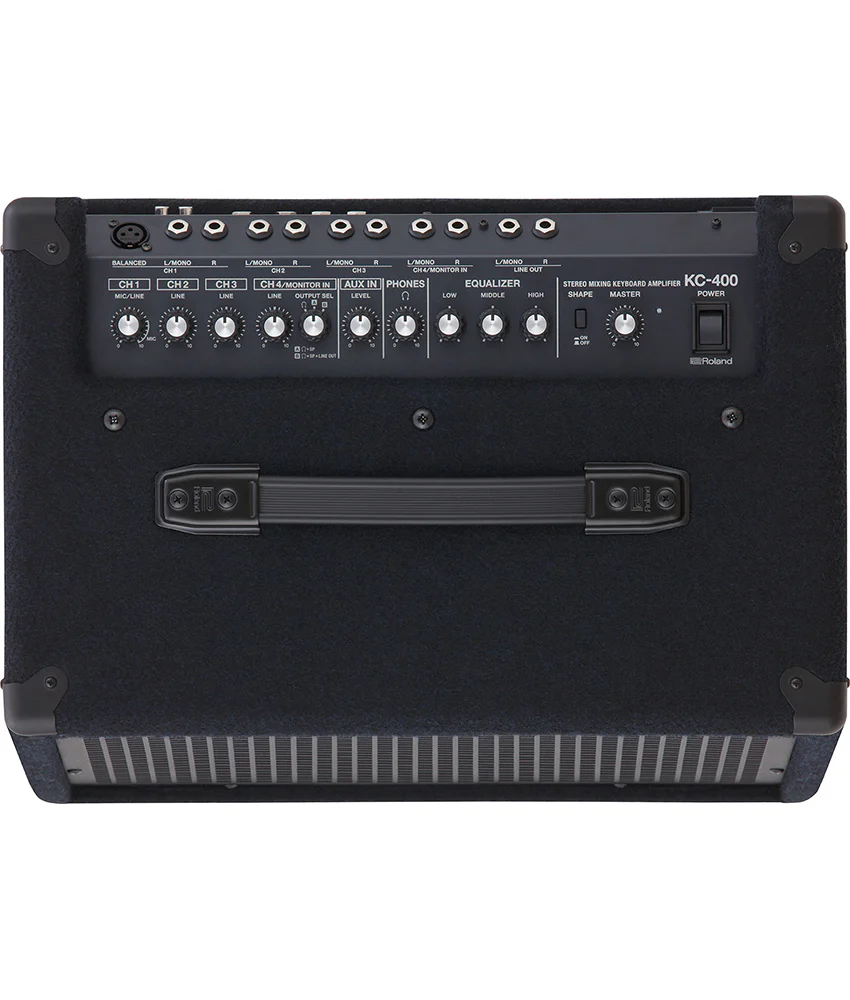

Controls:
SHAPE button
POWER switch
[CH1] MIC/LINE knob
[CH2] LINE knob
[CH3] LINE knob
[CH4] LINE knob
OUTPUT SEL knob
[PHONES] VOLUME knob
[EQUALIZER] LOW knob, MIDDLE knob, HIGH knob
MASTER knob

Indicator: Power

Connectors:
CH1 (BALANCED) jack: XLR type
CH1 (L/MONO, R) jacks: 1/4-inch phone type
CH2 (L/MONO, R) jacks: 1/4-inch phone type
CH3 (L/MONO, R) jacks: 1/4-inch phone type
CH4/MONITOR IN (L/MONO, R) jacks: 1/4-inch phone type
LINE OUT (L/MONO, R) jacks: 1/4-inch phone type
AUX IN (L, R) jacks: RCA phono type
AUX IN (STEREO) jacks: Stereo miniature phone type
SUB OUT jack: 1/4-inch phone type
STEREO LINK (IN, OUT) jacks: 1/4-inch phone type
PHONES jack: Stereo 1/4-inch TRS phone type (mono signal output)

Power Consumption: 40 W

INCLUDED ACCESSORIES: Owner's Manual

SIZE AND WEIGHT:
Width: 490 mm, 19-5/16 inches
Depth: 385 mm, 15-3/16 inches
Height: 470 mm, 18-9/16 inches
Weight: 22 kg, 48 lbs 9 oz
